主要技术参数：Main Technical Parameters

可根据产品要求 订制设备。

Can be made according to the product requires special equipment.

说明及特点:

1、该型分切机适合于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，彩印膜、卷筒纸等。是薄膜、薄片二次加工以及彩印包装企业的理想机型。

2、整机由PLC集中控制（三矢量电机）并采用触摸屏人机界面对整机进行集中操作。

3、放卷采用气动刹车制动器，由PLC自动计算卷径实现自动张力控制。

4、牵引控制由一台矢量变频电机驱动，实现恒线速度控制，并隔断收放卷张力之间的相互影响。

5、收卷轴采用气涨轴收卷由二台矢量变频电机独立驱动，收卷张力控制，根据收卷直径，分切厚度，设定张力等参数，由PLC运算实现自动张力递增。（可选滑差气涨轴轴）

6、收卷轴压辊离合采用气动装置，压力大小通过调压阀控制。

7、放卷装卸料采用气涨轴装卸料，气动锁紧，料卷气动升降，装卸料方便、效率高。

8、放卷EPC纠编装置可准确控制端面精度。

9、分切采用圆刀直刀分切装置，端面整齐，有边废料风送。

10、整机由同步带、同步轮为传动方式，执行与锁紧采用气动方式

11、牵引导辊：静平衡铝合金导辊，表面硬化处理

12、系统具有启动缓冲、停车防松、计米定长，定速、卷径运算等分切功能。

13、系统具有完善的机、电、气一体化设计，并采用完备的防护措施。

Description and characteristics:

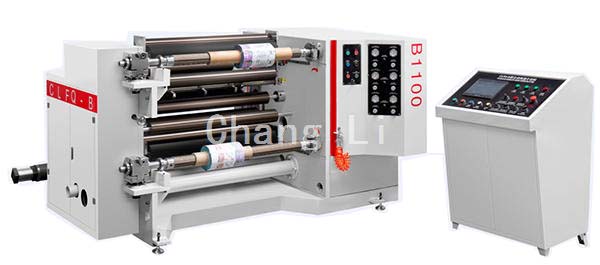

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve.

7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

8. The unwinding EPC correction device can accurately control the end face precision.

9. The cutting machine adopts a round knife straight knife slitting device, the end surface is neat, and there is a side scrap air supply.

10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
